Baffle Plate

It is often used in shell-and-tube heat exchangers to design shell-side medium flow channels, and the number of baffles is determined according to the nature and flow of the medium and the size of the heat exchanger. The baffle is set on the shell side, which can not only improve the heat transfer effect, but also play a role in supporting the tube bundle. There are two types of baffles: bow-shaped and disc-circular, and bow-shaped baffles include single bow and double bow.
  • Commodity name： Baffle Plate

Category:

Baffle Plate

Email:

yilia@cngreatpower.com

star@cngreatpower.com

Get Quote
Also Like
  • Description

  • Baffle Plate

    As the name implies, the baffle is a plate used to change the flow direction of the fluid. It is often used in the shell-and-tube heat exchanger to design the shell-side medium flow channel. The number of baffles is determined according to the nature and flow of the medium and the size of the heat exchanger. The baffle is set on the shell side, which can not only improve the heat transfer effect, but also play a role in supporting the tube bundle. There are two types of baffles: bow-shaped and disc-circular, and bow-shaped baffles include single bow and double bow

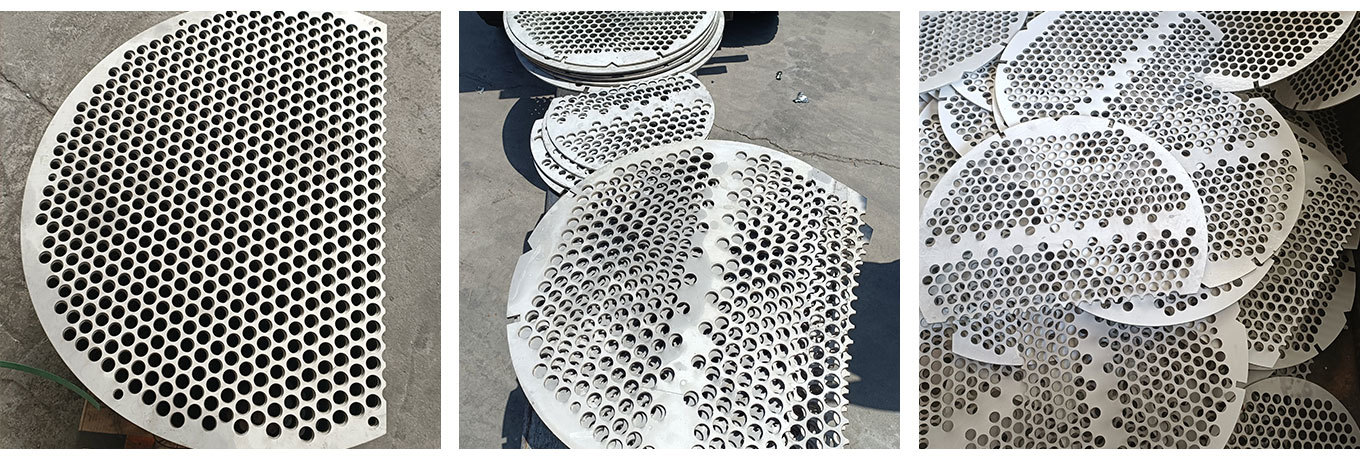

    Product Display

    Baffle
